chiller systems
-
1 Kw Fiber Laser Chiller Cooler
FRG-LC1000W (1.00 KW) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 4.000 KCAL/4.6 KW
COOLER LIQUID R407C WORKING RANGE +15/+25 COMPRESSOR TYPE ROTARY COMPRESSOR POWER 1 HP REFRIGERANT TYPE SHELL-TUBE CONDENSER TYPE AIR COOLED FAN SIZE 400 MM 220V FAN AMOUNT 1 WATER TANK VOLUME 18 LT WATER PUMP AND POWER İMPO 0,37 KW WATER PUMP FLOW 12 lt/dkk/36Mss ELECTRICAL PARTS 220V/WEG HEADING POWER 900 W -

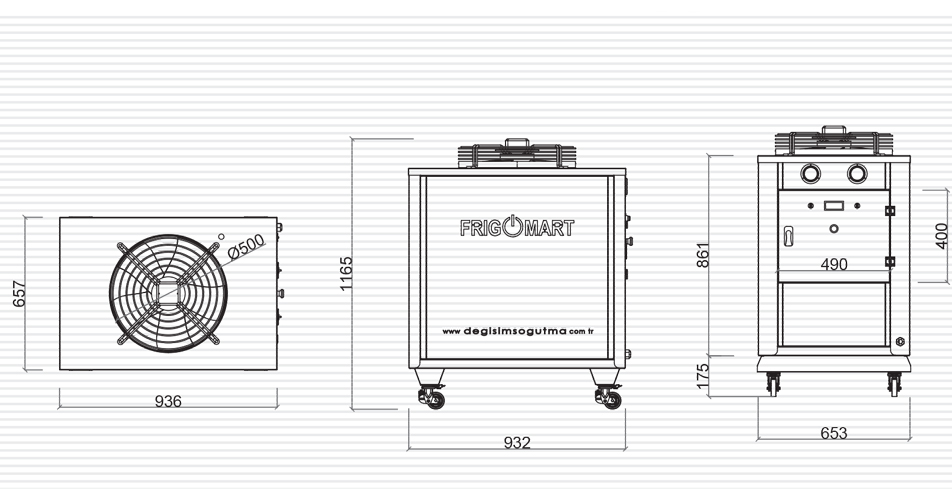

10.000 Kcal Chiller Cooler
ART-PC10MN(10.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 10.000 KCAL/11.6 KW
COOLER LIQUID R407C WORKING RANGE +10/+20 COMPRESSOR TYPE SCROLL COMPRESSOR POWER 4 HP REFRIGERANT TYPE PLATE HEAT EXCHANGER CONDENSER TYPE AIR COOLED FAN SIZE 500 MM 220V FAN AMOUNT 1 WATER TANK VOLUME 40 LT WATER PUMP AND POWER İMPO 1 KW WATER PUMP FLOW 2,3m³/h/30mSS ELECTRICAL PARTS 380V/WEG -

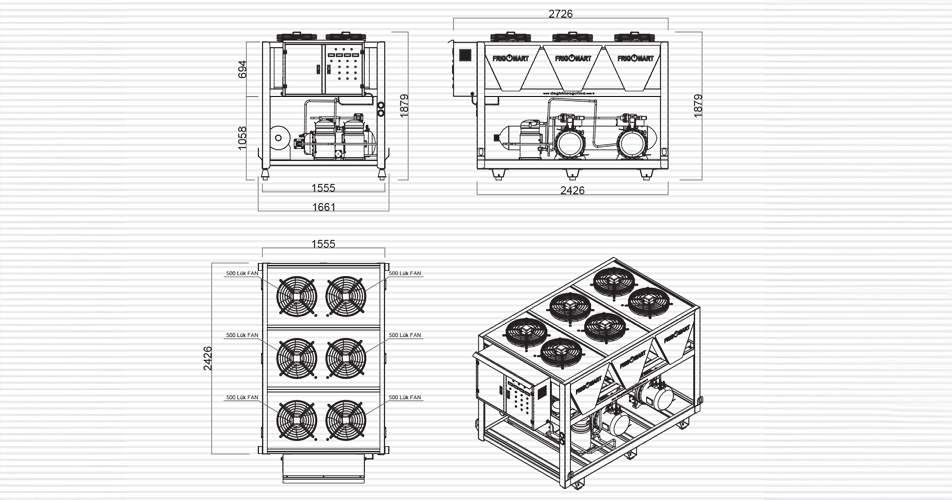

100.000 Kcal Chiller Cooler
ART-PC100MX(100.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 100.000 KCAL/116 KW
COOLER LIQUID R407C WORKING RANGE +10/+20 COMPRESSOR TYPE SCROLL COMPRESSOR POWER 4*9 HP REFRIGERANT TYPE SHELL-TUBE CONDENSER TYPE AIR COOLED FAN SIZE 500 MM 220V FAN AMOUNT 6 WATER TANK VOLUME 600 LT WATER PUMP AND POWER İMPO 4 KW WATER PUMP FLOW 25m³/h/30mSS ELECTRICAL PARTS 380V/WEG -

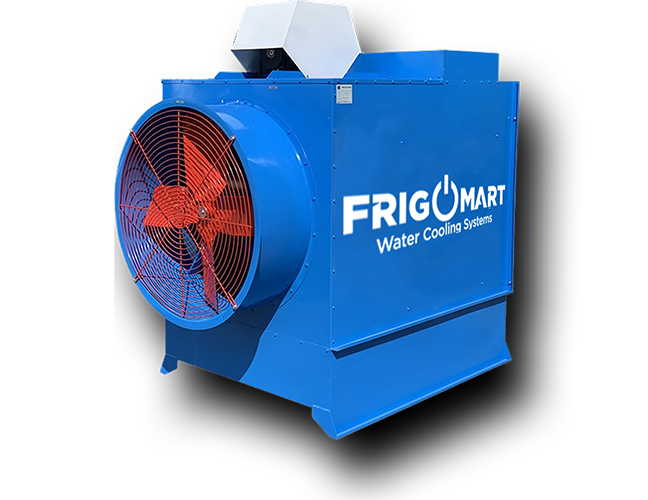

120.000 Kcal Water Cooling Tower with Galvanized Sheet and Axial Fan
ART-KS 23 (120.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 120.000 KCAL
DIMENSIONS WITDTH 117 CM LENGTH 192 CM HEIGHT 165 CM WATER FLOW MINIMUM 12,9 M3 / H MAXIMUM 23,4 M3 / H FAN DATA DIAMETER 915 MM SPEED 625 D/D MOTOR 380 V / 50 HZ / 1,1 KW -

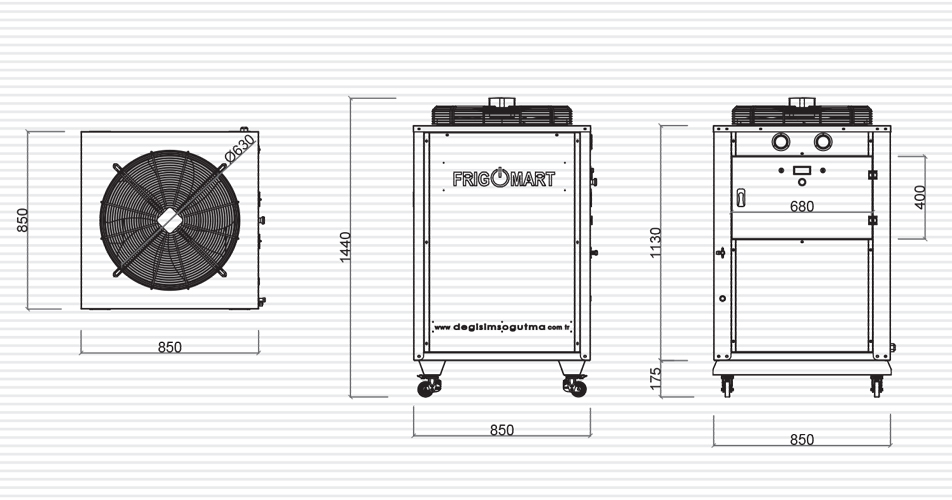

15.000 Kcal Chiller Cooler
ART-PC8MD(15.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 15.000 KCAL/17.4 KW
COOLER LIQUID R407C WORKING RANGE +10/+20 COMPRESSOR TYPE SCROLL COMPRESSOR POWER 5 HP REFRIGERANT TYPE PLATE HEAT EXCHANGER CONDENSER TYPE AIR COOLED FAN SIZE 630 MM 220V FAN AMOUNT 1 WATER TANK VOLUME 70 LT WATER PUMP AND POWER İMPO 1,5 KW WATER PUMP FLOW 3,5m³/h/30mSS ELECTRICAL PARTS 380V/WEG -
150.000 Kcal Water Cooling Tower with Galvanized Sheet and Axial Fan
ART-KS 25 (150.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 150.000 KCAL DIMENSIONS WITDTH 117 CM LENGTH 192 CM HEIGHT 165 CM WATER FLOW MINIMUM 15,9 M3 / H MAXIMUM 29,7 M3 / H FAN DATA DIAMETER 915 MM SPEED 785 D/D MOTOR 380 V / 50 HZ / 2,2 KW -
190.000 Kcal Water Cooling Tower with Galvanized Sheet and Axial Fan
ART-KS 27 (190.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 190.000 KCAL DIMENSIONS WITDTH 117 CM LENGTH 192 CM HEIGHT 222 CM WATER FLOW MINIMUM 20,6 M3 / H MAXIMUM 39,4 M3 / H FAN DATA DIAMETER 915 MM SPEED 785 D/D MOTOR 380 V / 50 HZ / 2,2 KW -
2 Kw Fiber Laser Chiller Cooler
FRG-LC2000W (2.00 KW) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 6.000 KCAL/6.9 KW
COOLER LIQUID R407C WORKING RANGE +15/+25 COMPRESSOR TYPE ROTARY COMPRESSOR POWER 1,5 HP REFRIGERANT TYPE SHELL-TUBE CONDENSER TYPE AIR COOLED FAN SIZE 450 MM 220V FAN AMOUNT 1 WATER TANK VOLUME 18 LT WATER PUMP AND POWER İMPO 0,55 KW WATER PUMP FLOW 15 lt/dkk/44Mss ELECTRICAL PARTS 220V/WEG HEADING POWER 900 W -

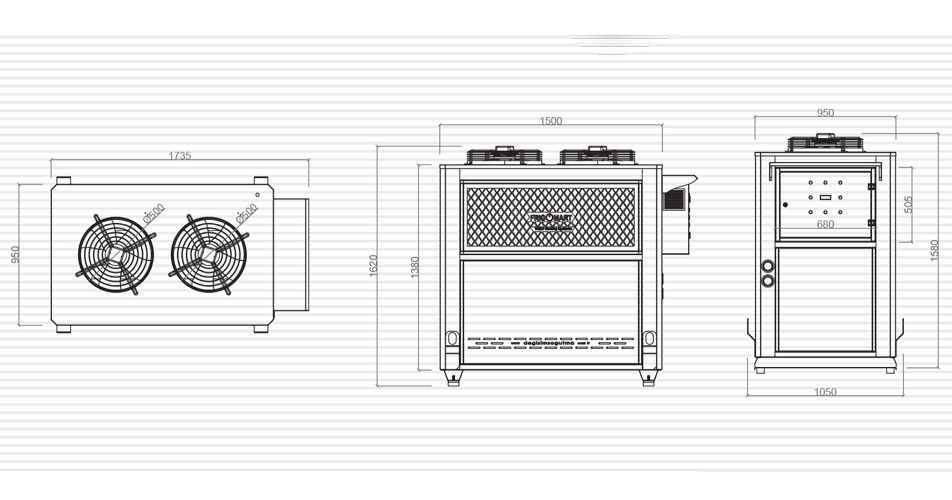

20.000 Kcal Chiller Cooler
ART-PC20MD(20.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 20.000 KCAL/23,2 KW
COOLER LIQUID R407C WORKING RANGE +10/+20 COMPRESSOR TYPE SCROLL COMPRESSOR POWER 8 HP REFRIGERANT TYPE PLATE HEAT EXCHANGER CONDENSER TYPE AIR COOLED FAN SIZE 450 MM 220V FAN AMOUNT 2 WATER TANK VOLUME 100 LT WATER PUMP AND POWER İMPO 2 KW WATER PUMP FLOW 5m³/h/30mSS ELECTRICAL PARTS 380V/WEG -

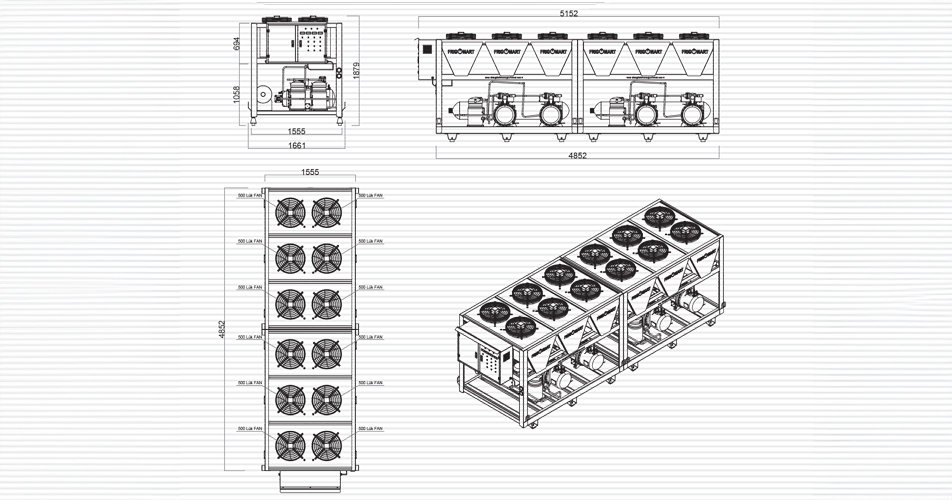

200.000 Kcal Chiller Cooler
ART-PC200MX(200.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 200.000 KCAL/232 KW
COOLER LIQUID R407C WORKING RANGE +10/+20 COMPRESSOR TYPE SCROLL COMPRESSOR POWER 2*35 HP REFRIGERANT TYPE SHELL-TUBE CONDENSER TYPE AIR COOLED FAN SIZE 500 MM 220V FAN AMOUNT 12 WATER TANK VOLUME 1300 LT WATER PUMP AND POWER İMPO 8 KW WATER PUMP FLOW 50m³/h/30mSS ELECTRICAL PARTS 380V/WEG -
22.500 Kcal Water Cooling Tower with Galvanized Sheet and Axial Fan
ART-KS 13 (22.500 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 22.500 KCAL DIMENSIONS WITDTH 56 CM LENGTH 125 CM HEIGHT 103 CM WATER FLOW MINIMUM 2,7 M3 / H MAXIMUM 4,5 M3 / H FAN DATA DIAMETER 460 MM SPEED 1410 D/D MOTOR 380 V / 50 HZ / 0,37 KW -
225.000 Kcal Water Cooling Tower with Galvanized Sheet and Axial Fan
ART-KS 29 (225.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 225.000 KCAL DIMENSIONS WITDTH 117 CM LENGTH 216 CM HEIGHT 225 CM WATER FLOW MINIMUM 23,6 M3 / H MAXIMUM 45,0 M3 / H FAN DATA DIAMETER 915 MM SPEED 785 D/D MOTOR 380 V / 50 HZ / 2,2 KW -
285.000 Kcal Water Cooling Tower with Galvanized Sheet and Axial Fan
ART-KS 31 (285.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 285.000 KCAL DIMENSIONS WITDTH 146 CM LENGTH 225 CM HEIGHT 227 CM WATER FLOW MINIMUM 28,8 M3 / H MAXIMUM 57,7 M3 / H FAN DATA DIAMETER 1220 MM SPEED 550 D/D MOTOR 380 V / 50 HZ / 2,2 KW -
3 Kw Fiber Laser Chiller Cooler
FRG-LC3000W (3.00 KW) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 8.000 KCAL/9.6 KW
COOLER LIQUID R407C WORKING RANGE +15/+25 COMPRESSOR TYPE ROTARY COMPRESSOR POWER 2 HP REFRIGERANT TYPE SHELL-TUBE CONDENSER TYPE AIR COOLED FAN SIZE 450 MM 220V FAN AMOUNT 1 WATER TANK VOLUME 40 LT WATER PUMP AND POWER İMPO 0,75 KW WATER PUMP FLOW 22 lt/dkk/50Mss ELECTRICAL PARTS 220V/WEG HEADING POWER 1.700 W -
30.000 Kcal Chiller Cooler
ART-PC30MD(30.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 30.000 KCAL/34.8 KW COOLER LIQUID R407C WORKING RANGE +10/+20 COMPRESSOR TYPE SCROLL COMPRESSOR POWER 1*10 HP REFRIGERANT TYPE PLATE HEAT EXCHANGER CONDENSER TYPE AIR COOLED FAN SIZE 500 MM 220V FAN AMOUNT 2 WATER TANK VOLUME 150 LT WATER PUMP AND POWER İMPO 2 KW WATER PUMP FLOW 7m³/h/30mSS ELECTRICAL PARTS 380V/WEG -
33.000 Kcal Water Cooling Tower with Galvanized Sheet and Axial Fan
ART-KS 15 (33.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 33.000 KCAL DIMENSIONS WITDTH 56 CM LENGTH 125 CM HEIGHT 131 CM WATER FLOW MINIMUM 4,0 M3 / H MAXIMUM 6,6 M3 / H FAN DATA DIAMETER 460 MM SPEED 1410 D/D MOTOR 380 V / 50 HZ / 0,37 KW -
380.000 Kcal Water Cooling Tower with Galvanized Sheet and Axial Fan
ART-KS 33 (380.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 380.000 KCAL DIMENSIONS WITDTH 146 CM LENGTH 225 CM HEIGHT 227 CM WATER FLOW MINIMUM 37,9 M3 / H MAXIMUM 76,5 M3 / H FAN DATA DIAMETER 1220 MM SPEED 645 D/D MOTOR 380 V / 50 HZ / 4 KW -
4 Kw Fiber Laser Chiller Cooler
FRG-LC4000W (4.00 KW) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 9.500 KCAL/10.7 KW COOLER LIQUID R407C WORKING RANGE +15/+25 COMPRESSOR TYPE ROTARY COMPRESSOR POWER 2,5 HP REFRIGERANT TYPE SHELL-TUBE CONDENSER TYPE AIR COOLED FAN SIZE 500 MM 220V FAN AMOUNT 1 WATER TANK VOLUME 40 LT WATER PUMP AND POWER İMPO 1 KW WATER PUMP FLOW 40 lt/dkk/49Mss ELECTRICAL PARTS 220V/WEG HEADING POWER 2.000 W -

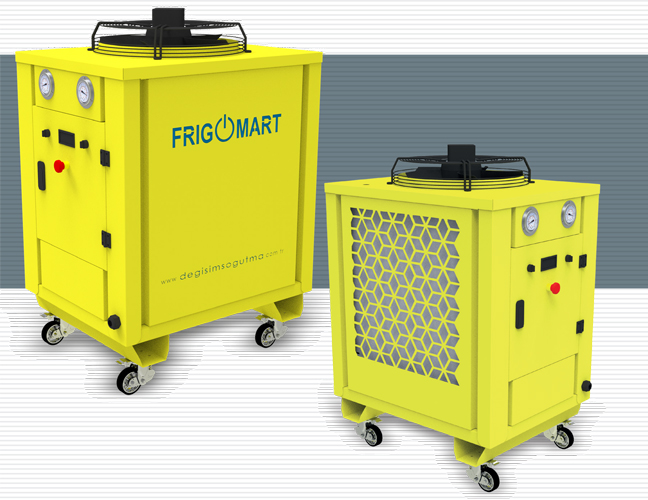

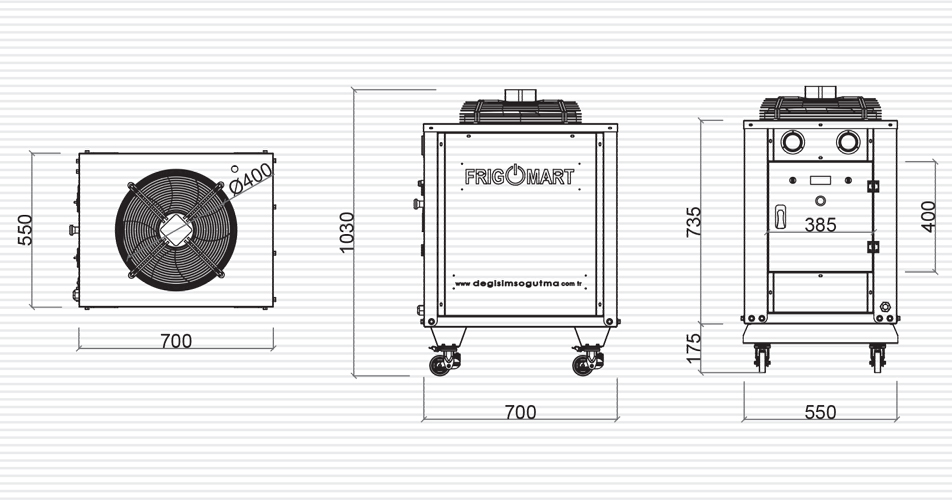

4.000 Kcal Chiller Cooler
ART-PC4MN(4.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 4.000 KCAL/4.6 KW
COOLER LIQUID R407C WORKING RANGE +10/+20 COMPRESSOR TYPE ROTARY COMPRESSOR POWER 1 HP REFRIGERANT TYPE PLATE HEAT EXCHANGER CONDENSER TYPE AIR COOLED FAN SIZE 400 MM 220V FAN AMOUNT 1 WATER TANK VOLUME 18 LT WATER PUMP AND POWER İMPO 0,50 KW WATER PUMP FLOW 1m³/h/30mSS ELECTRICAL PARTS 220V/WEG -
40.000 Kcal Water Cooling Tower with Galvanized Sheet and Axial Fan
ART-KS 17 (40.000 KCAL) TECHNICIAL SPECIFICATIONS COOLING CAPACITY 40.000 KCAL DIMENSIONS WITDTH 67 CM LENGTH 140 CM HEIGHT 131 CM WATER FLOW MINIMUM 5,0 M3 / H MAXIMUM 8,1 M3 / H FAN DATA DIAMETER 560 MM SPEED 1410 D/D MOTOR 380 V / 50 HZ / 0,75 KW
